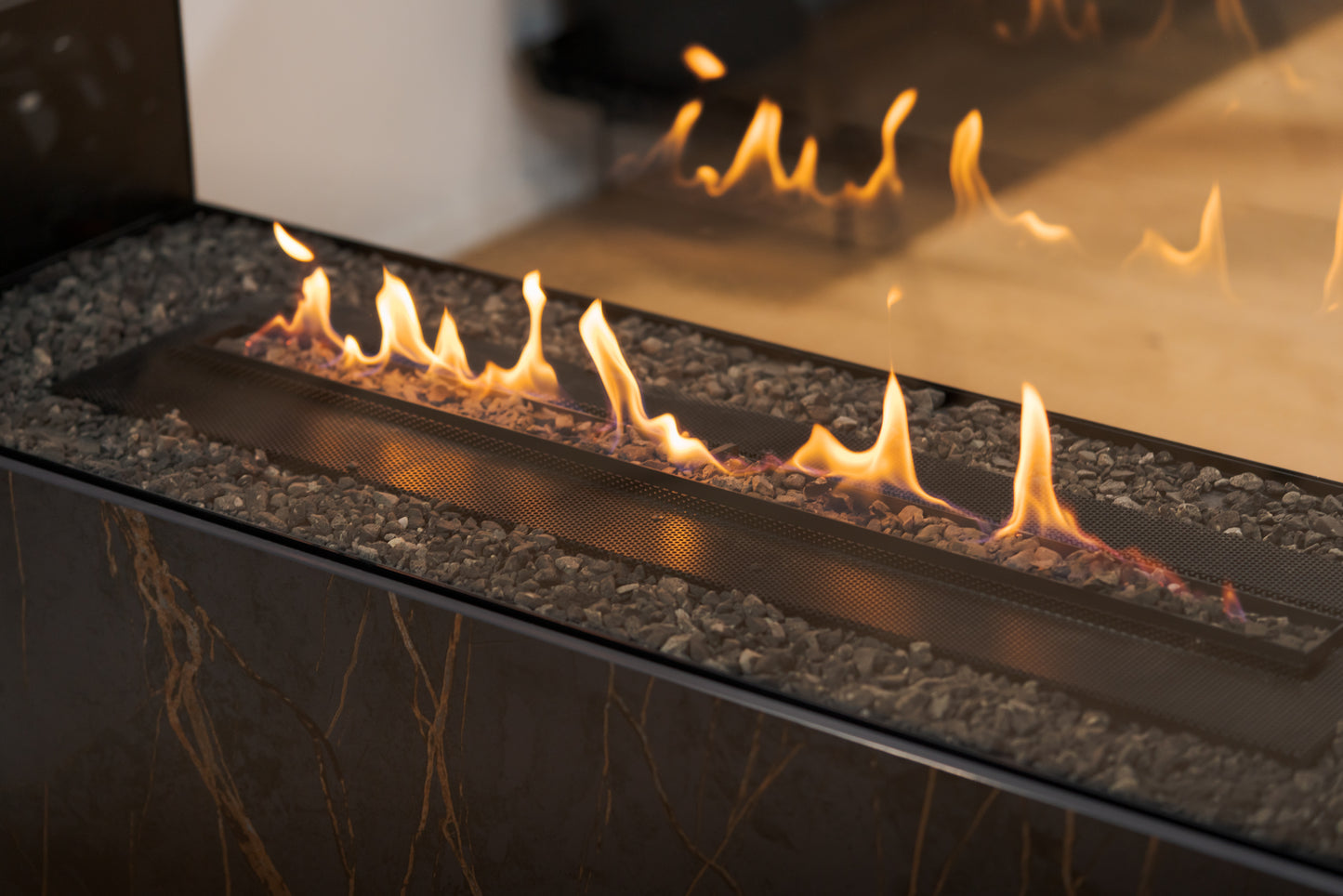

PLANIKA PANORAMA Automatic BioEthanol Fireplace
Glass enclosed automatic fireplaces
For the most demanding clients seeking extra protection, advanced technology, and comfort, the Panorama stands out as the exclusive ethanol BEV® fireplace. It distinguishes itself by featuring a fully closed configuration behind tempered glass. This unique design provides the highest level of security while offering an immersive fireplace experience.
Also, with the base from the FLA4 system, it gives a fully automatic control with a remote, app or wall switch. Using BEV Technology® and burning only ethanol vapours it is efficient and safe. Moreover, it comes in six shapes – all 1200 mm long. However, a vent below the ceiling is necessary to distributes the heat.
Details
- Zero clearance
- Automatic refuelling system
- 1200mm long
- 6 shapes
- Remote control, app and wall switch
- BEV Technology®
PLANIKA PANORAMA Automatic BioEthanol Fireplace.
REAL FIRE WITH NO HARMFUL SUBSTANCES
Planika developed a cutting-edge solution based on combustion of ethanol vapours. The real net zero fireplaces of the future. This modern device produces no ash, soot, or other harmful substances therefore eliminating the need for a chimney or flue.
HOW DOES A NET ZERO FIREPLACE WORK?
The net zero fireplace burner incorporates an automatic Burning Ethanol Vapour Technology. The vapour generator changes liquid ethanol into gas and the microprocessor controls the amount of released alcohol. The combustion is clean as it takes place just above the burner where it has a full access to oxygen.
HOW IS THE NET ZERO TECHNOLOGY CO2 NEUTRAL?
Planika’s eco fireplaces utilise bioethanol, an organic eco fuel made from plants, such as corn, wheat or potatoes. Ethanol actively produces lower carbon dioxide emissions and ensures a particulate-free burning process.
The Net Zero Technology heats up the eco fuel, creating ethanol vapours which are then combusted. The entire process is under a full control of the net zero fireplace. While combusted, the alcohol emits carbon dioxide that is then entirely absorbed by plants in photosynthesis.
This way, the process comes full circle. 100% of the emissions are compensated by the plants that absorb CO2. Consequently, the burning ethanol vapours don’t contribute to global warming.
BENEFITS OF THE SOLUTION
It is 1200mm long. Moreover, it comes in seven different arrangements and burns for approx. 9 hours. The fireplace comes together as a full system to be installed without a chimney connection.
The solution has two vents, firstly ,one at the bottom to draw in the air, and secondly, one below the ceiling, distributing heat from the fireplace. Panorama has a zero-clearance feature allowing to implement it in a wall made from combustion materials.
AUTOMATIC REFILLING SYSTEM
As in so many cases, Planika was the first to introduce the automatic refilling system. It will protect the user and the fireplace against any incidental spillage or accident. The pump will switch off automatically when the fuel tank is full.
Technical Info
- Fuel tank capacity: 5,5 L
- Maximum burn time: 10 h
- Flame height regulation: 6 stages
- Fuel type: bioethanol 95 – 96,6%
- Flue: not required
- Power supply: 230V
- Finish: black powder coating
- Materials: steel, galvanized steel, toughened glass
- Application: for indoor use only
INSTALLATION REQUIREMENTS:
For customized projects we would appreciate your contacting us so we can help you before purchasing. The reason is that you need to follow thoroughly the installation manual provided by the manufacturer or ourselves on request. For any alterations, we would need your elevation drawings to get your project approved. For further information please contact us at info@biofires.com or 02077241919.
Delivery
This is a ‘special order’ product and is not normally in stock
DELIVERY IS NOT INCLUDED IN THE PRICE.
The lead time is 4-5 weeks and we would require full payment in advance before processing the order.
This product will be delivered on a pallet. For more information, please call 020 7724 1919 or send an email to info@biofires.com
Downloads
A brief brochure with descriptions, technical details and specifications. Perfect document for architects and designers.
