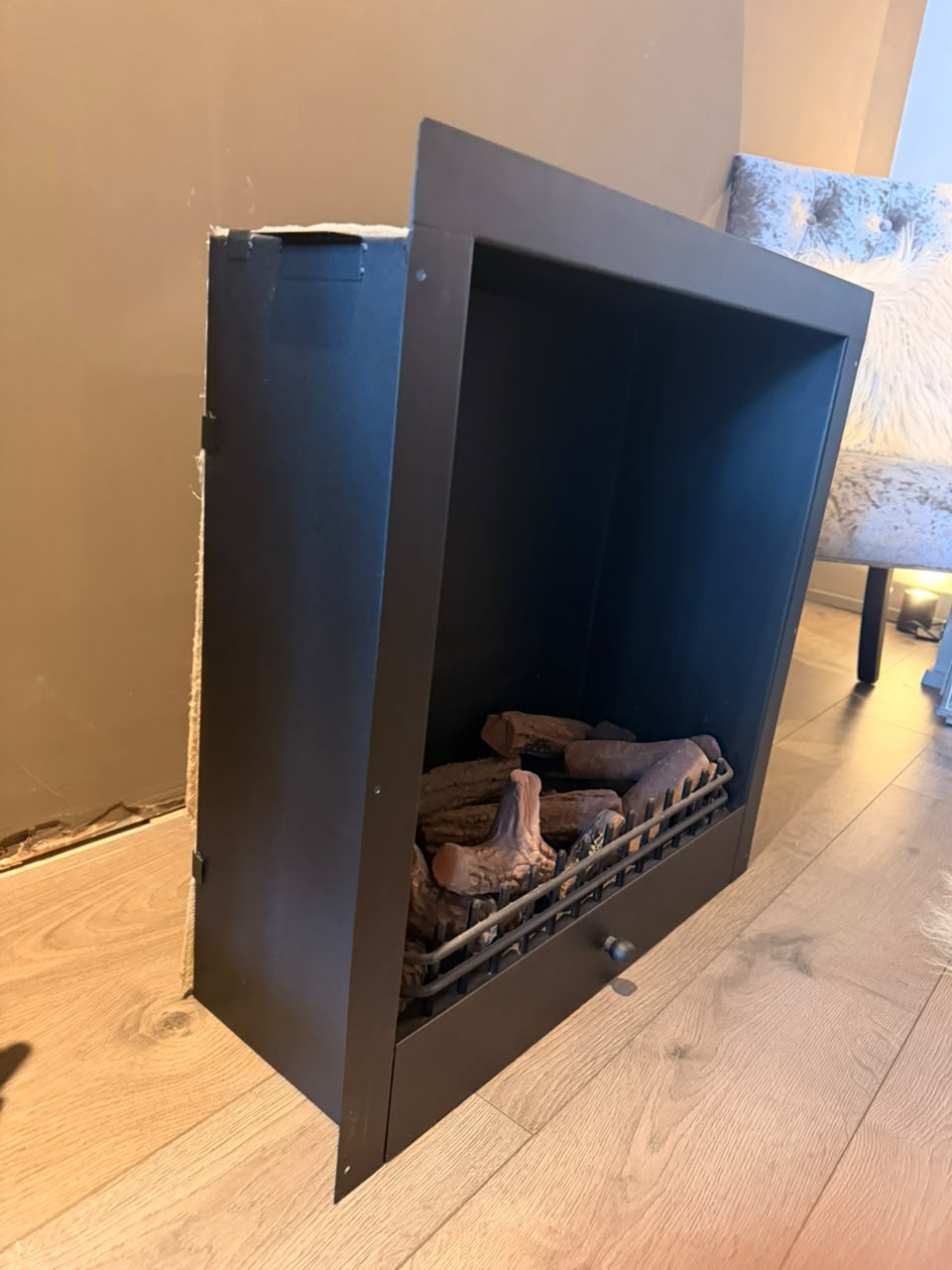

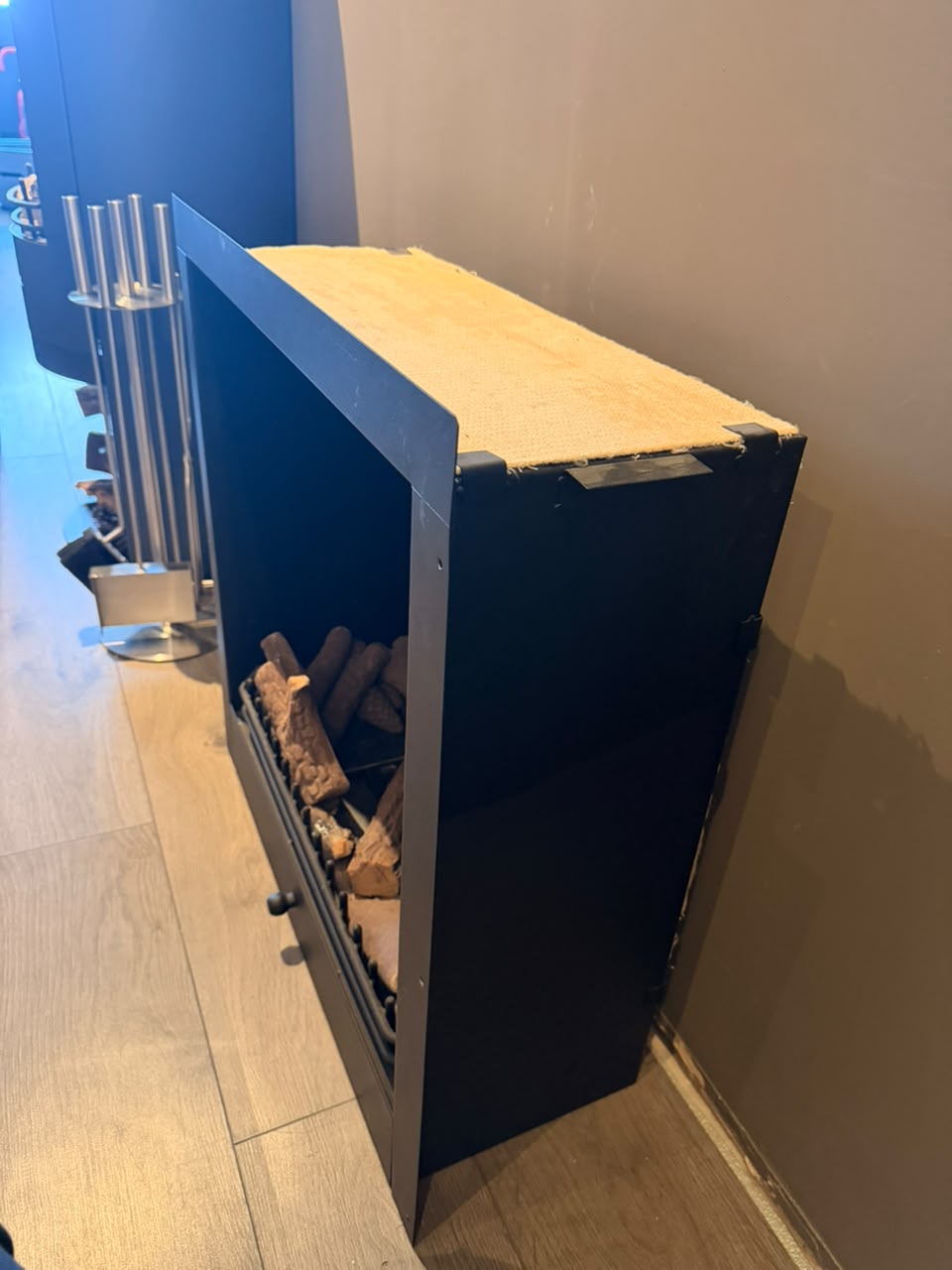

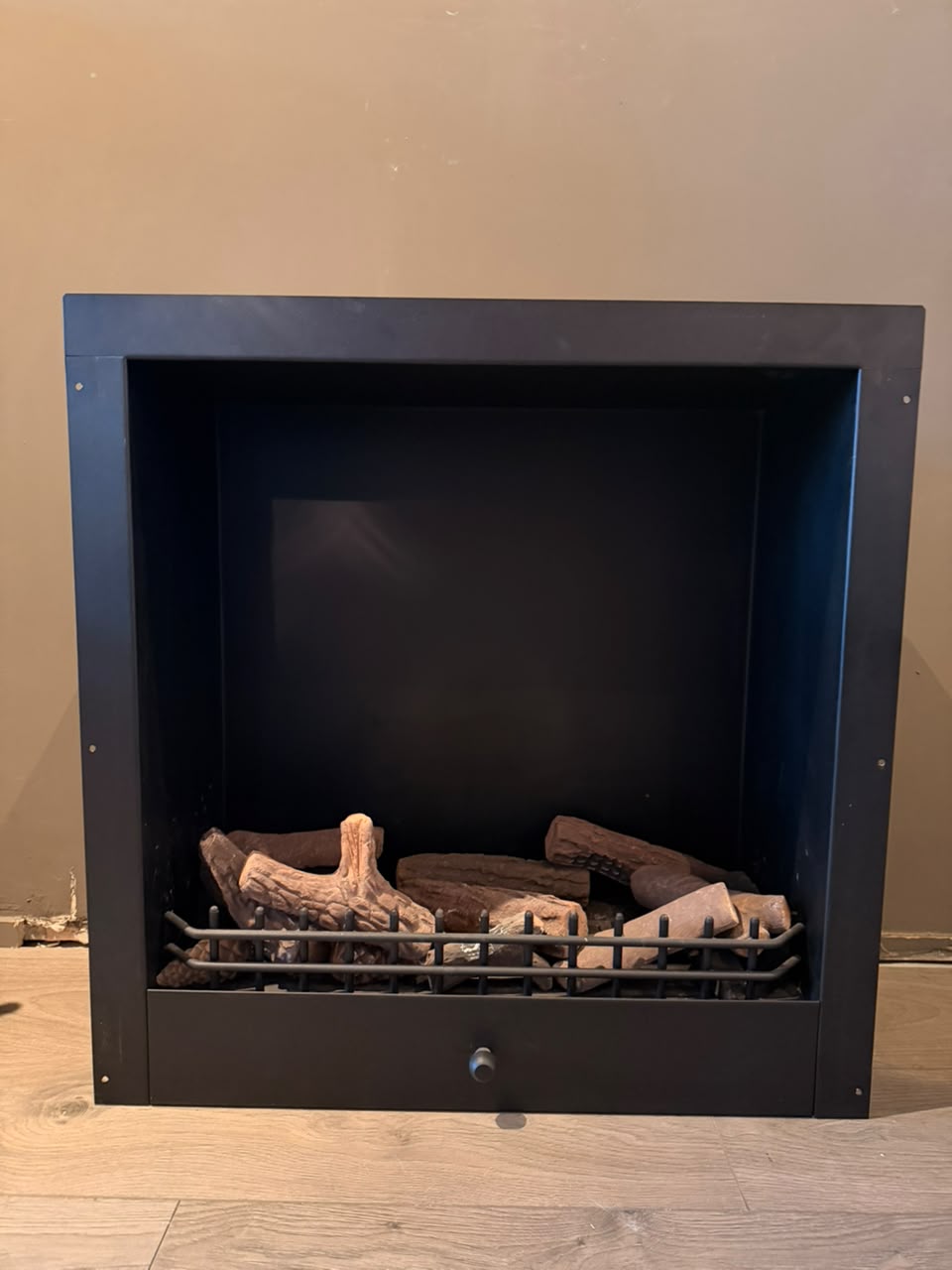

DIY Bioethanol Firebox Insert for Empty Mantelpieces (EX DISPLAY)

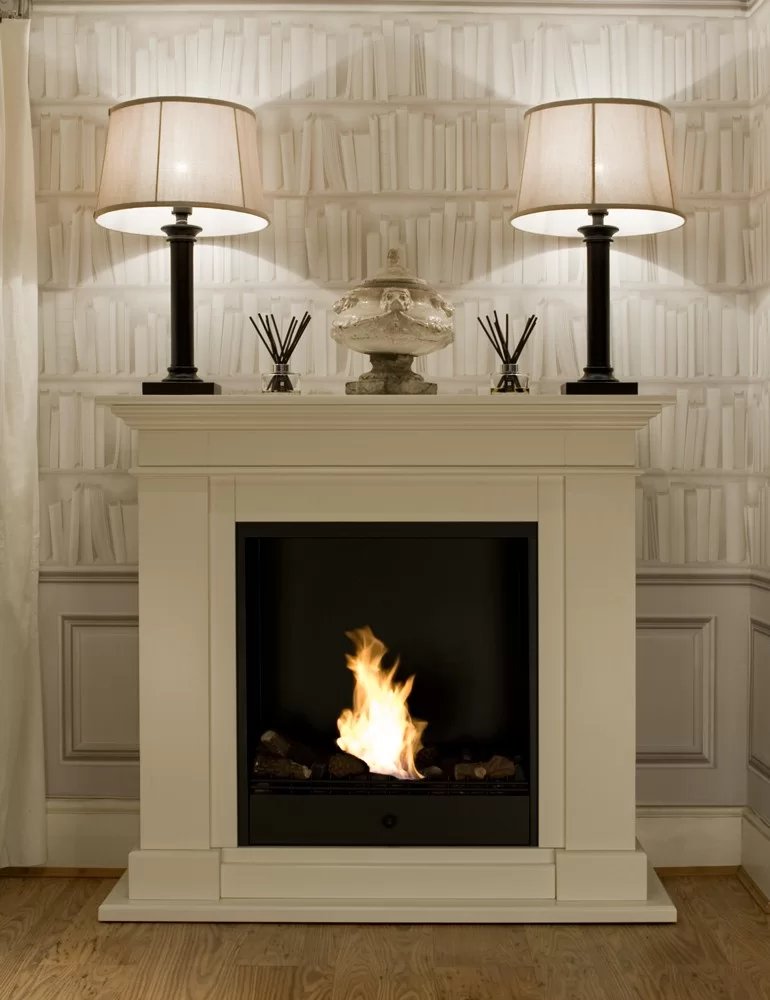

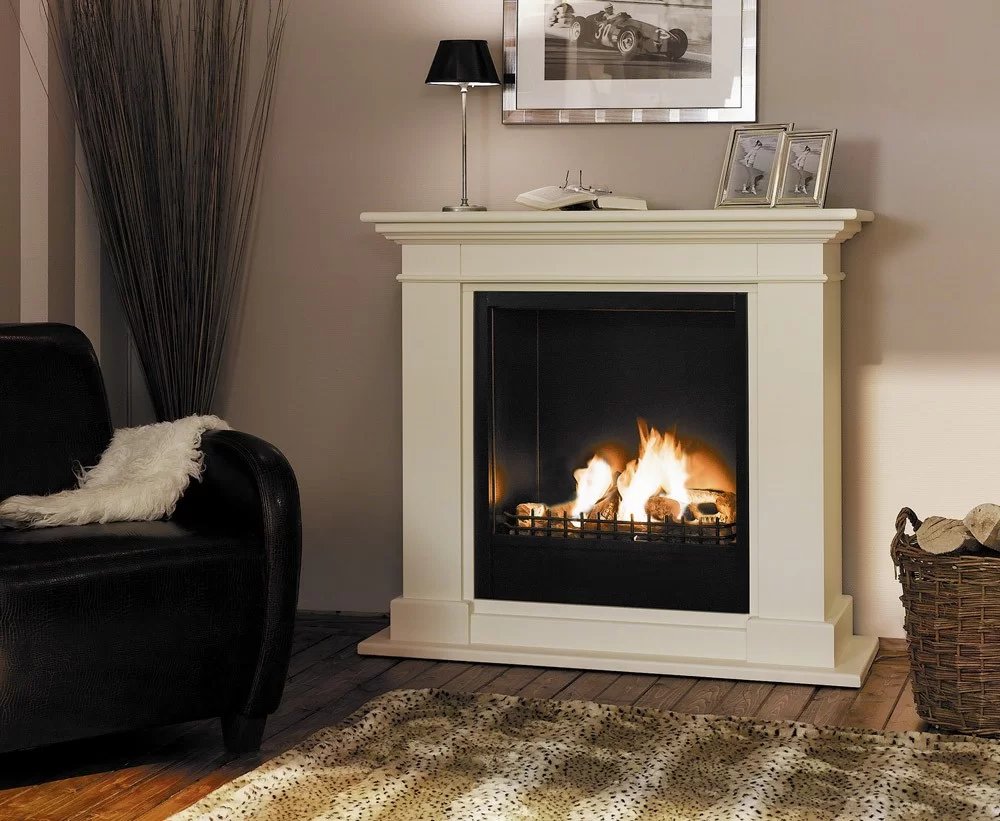

Our DIY Bioethanol Firebox Insert offers complete flexibility and is the perfect solution for replacing an old electric fireplace, a redundant gas fire opening, or a fake chimney. Create your dream fireplace quickly and easily by combining it with the mantelpiece of your choice.

This is a larger version of our popular DIY Bioethanol Firebox Insert.

This classic built-in fireplace does not require a flue or chimney connection. Simply build a suitable timber frame and install the firebox within it. As the fireplace generates heat during operation, the surrounding structure should be finished using heat-resistant, preferably non-combustible, materials.

The DIY Bioethanol Firebox Insert is fitted with our 1.3L Small Burner and comes complete with a specially designed 18-piece Cone & Log Set, creating an attractive and realistic flame display.

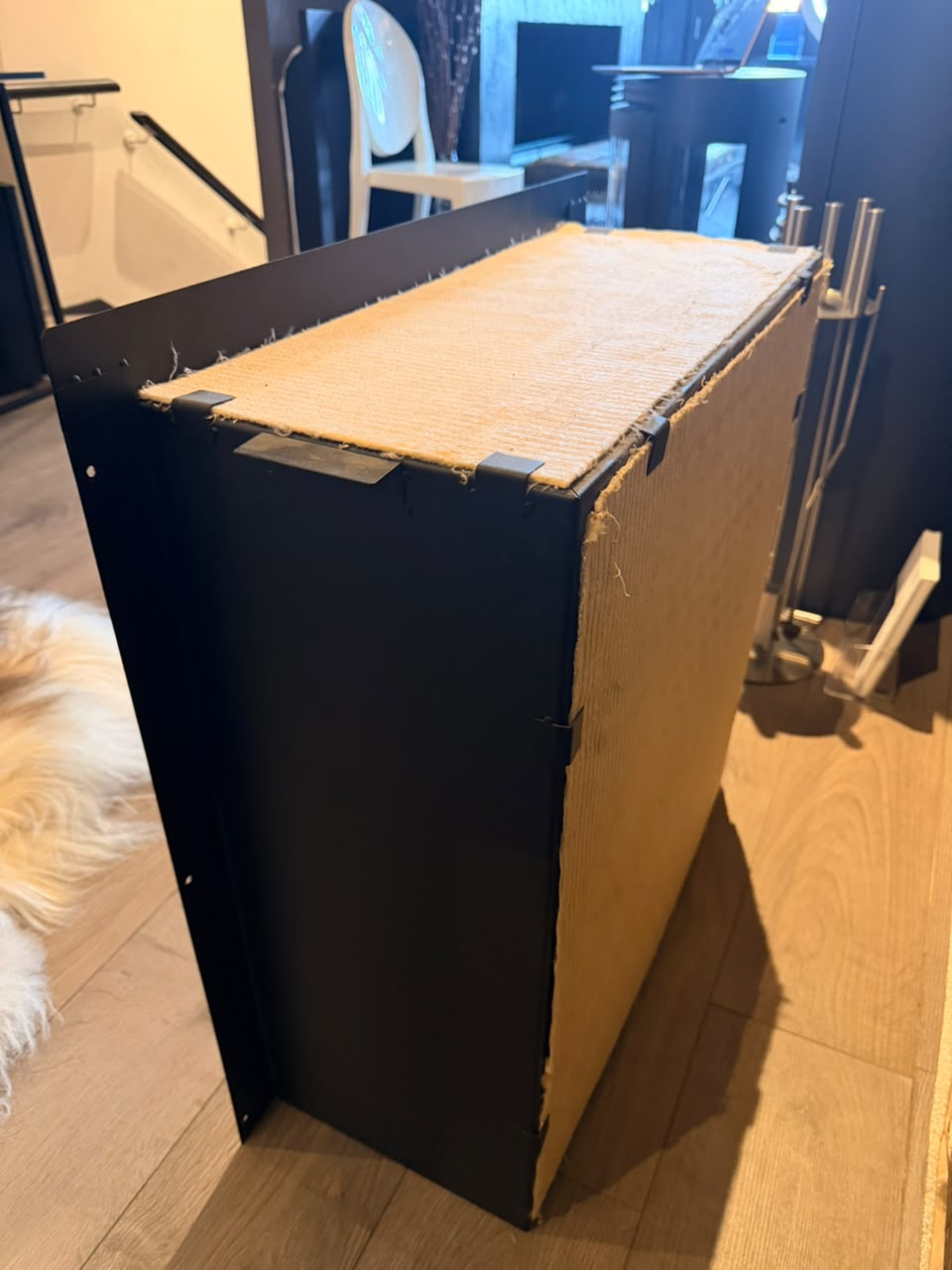

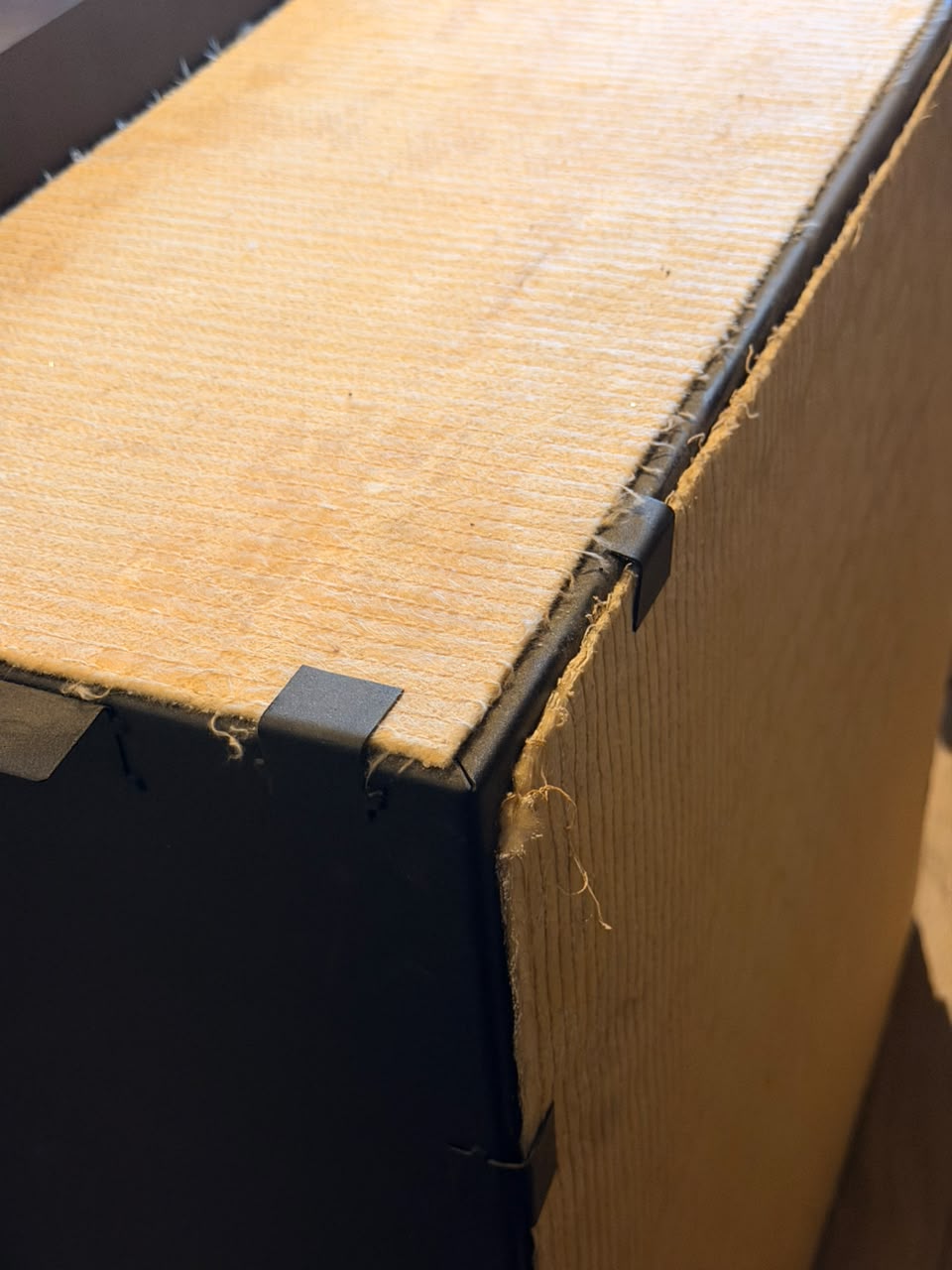

The firebox features an integrated rear heat shield, providing excellent protection for the wall behind.

Moreover, the lid includes Fragrance Diffusers, making the fireplace compatible with our Aura Oils. By sliding the lid across slightly, you can regulate the size of flame, therefore the heat output (2-3 kW) and the burning time (3-6 hrs).

This unit is suitable for DIY electric fire conversion; however, it produces a real flame so regular fire regulations for building fireplaces will apply.

In the box of the DIY Bioethanol Firebox:

• Black firebox and heat shield
• Stainless steel Small Burner
• Engraved sliding lid featuring Fragrance Diffusers for Aura Oils

• Control/extinguishing tool

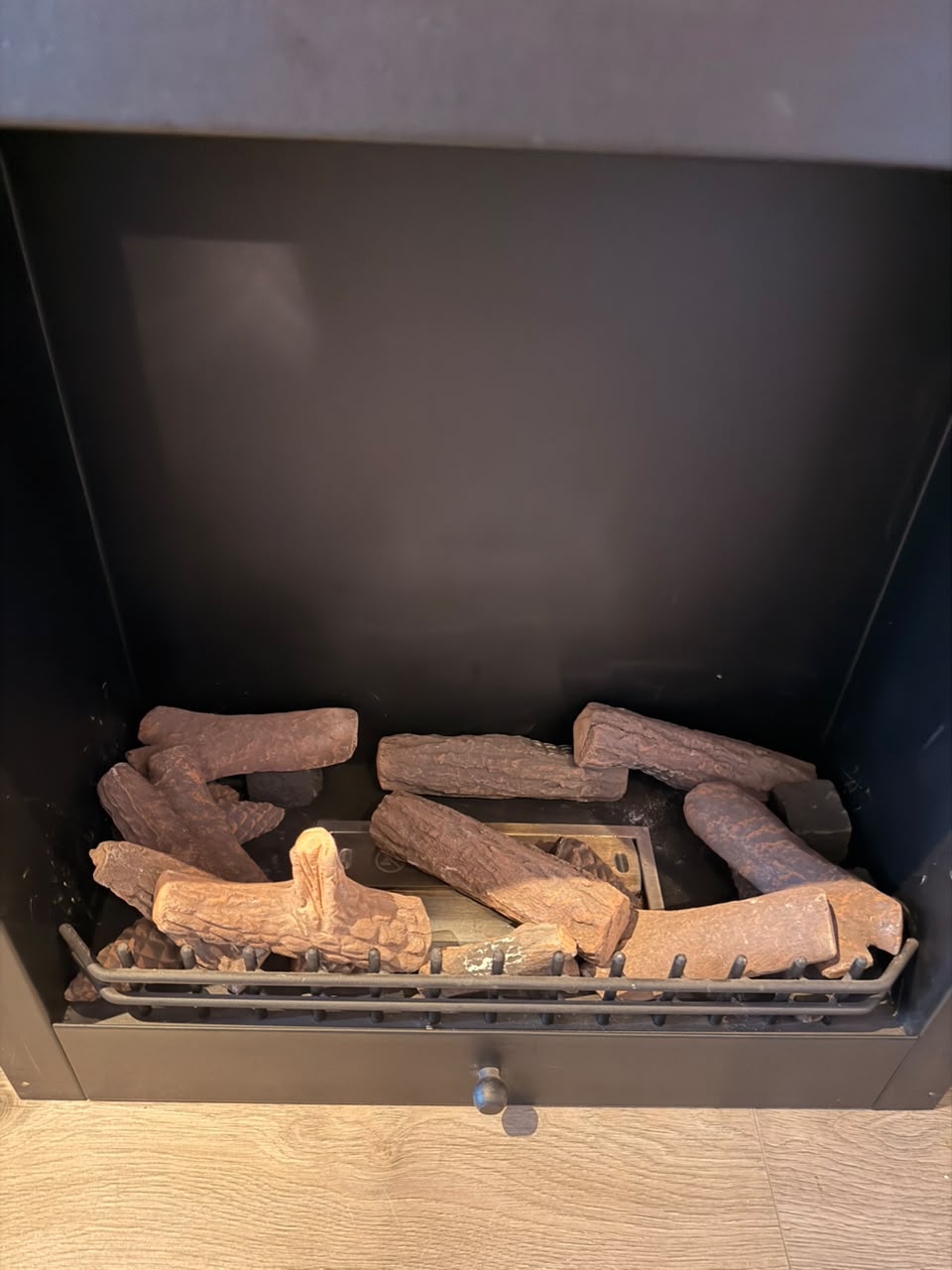

• 18 Cone and Log Set
• Funnel
• User Instructions

NOTE: Every mantelpiece is different! For example, an electric fireplace made of wood or MDF needs a replacement or a lining of the back panel. Therefore, please make sure to use a non-flammable material to do this. We recommend using Vermiculite Board for this purpose.

Technical Info

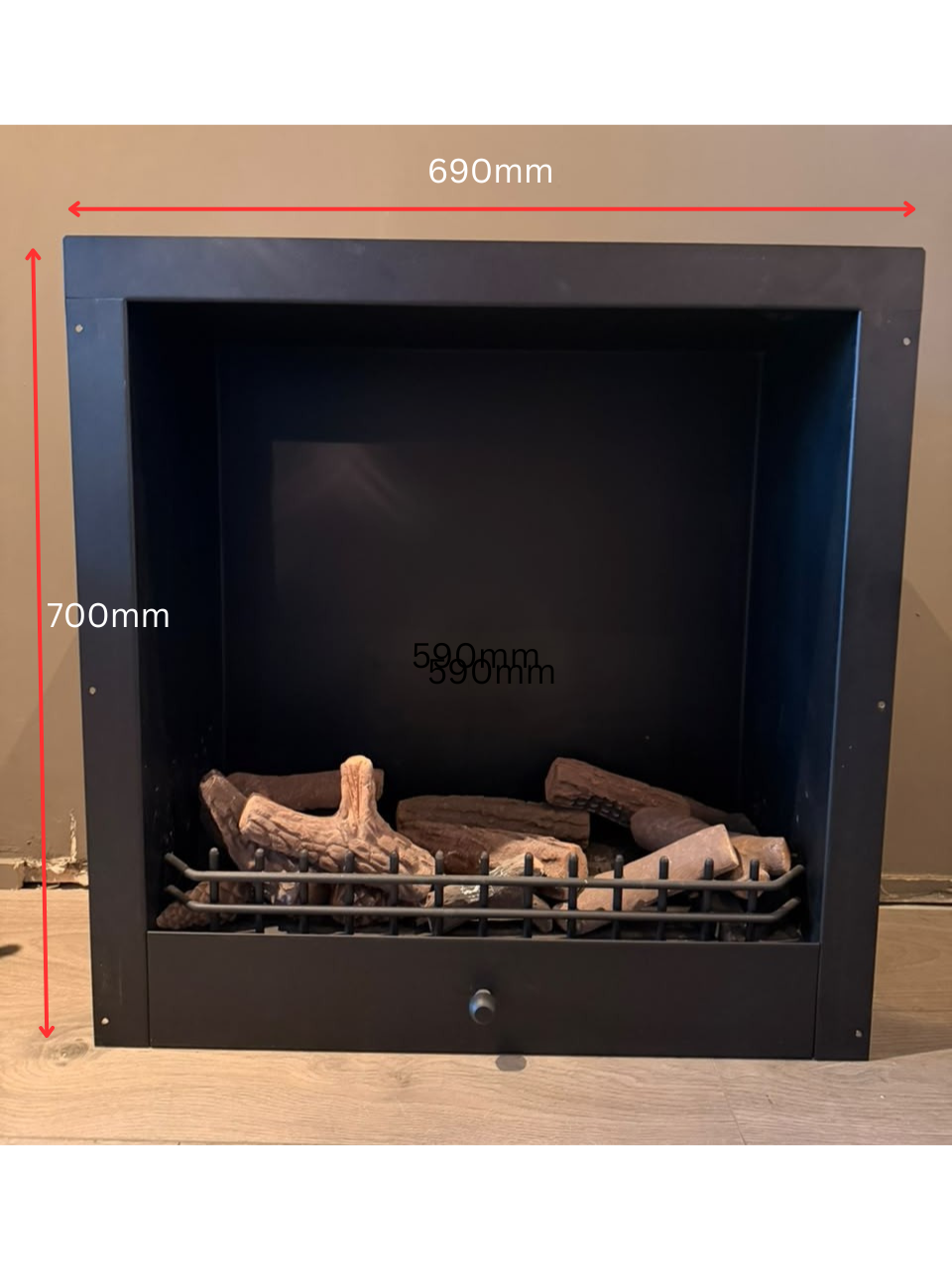

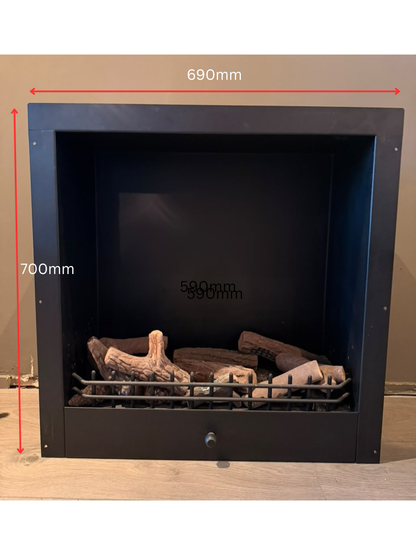

• Dimensions:
  Width 690mm
  Height 700mm
  Depth 255mm minimum

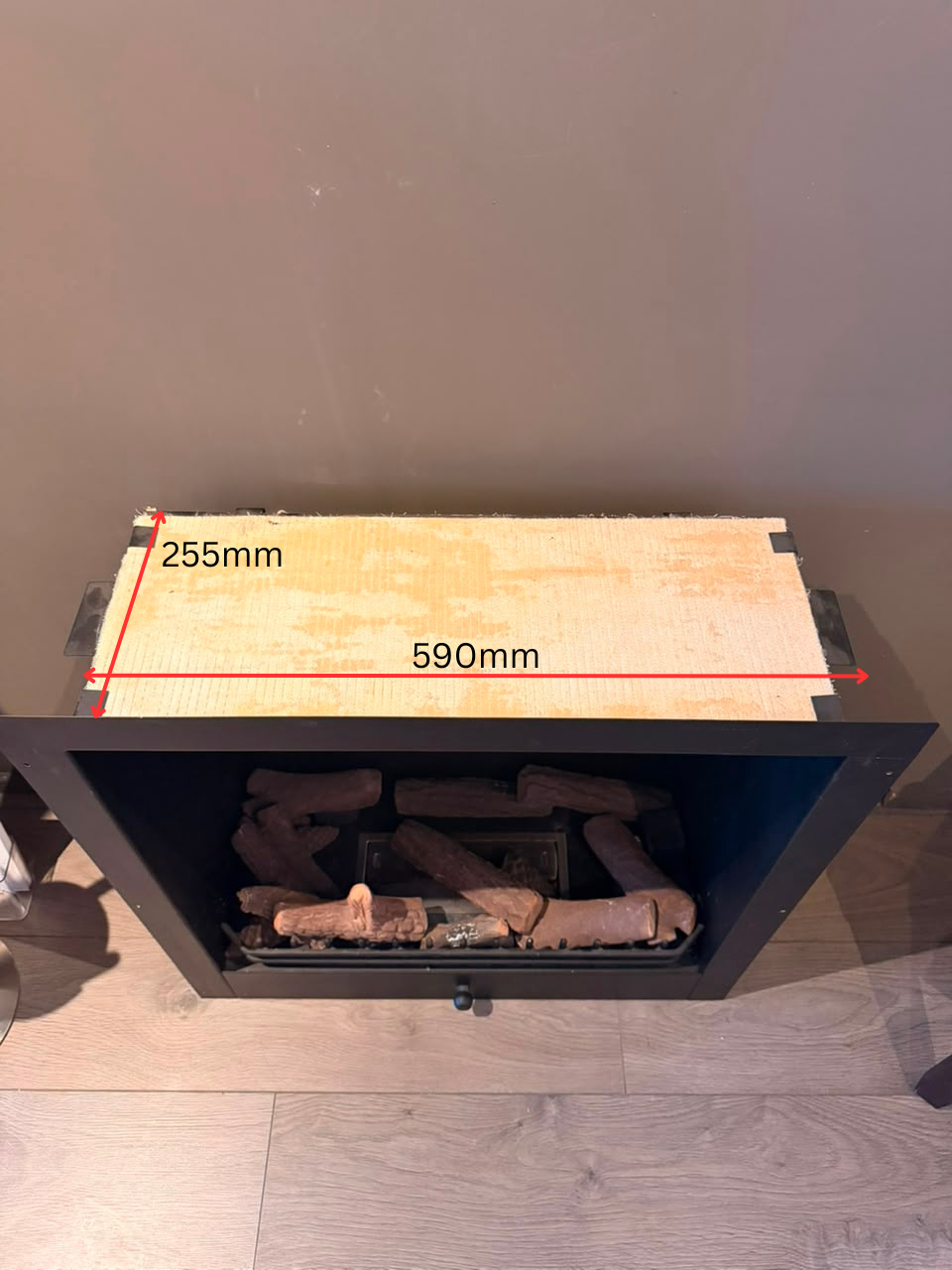

• Installation Dimensions:
  Width 590mm
  Height 650mm
  Depth 255mm minimum

• Burner capacity:  1.3l
• Burning time: 3 - 6 hrs (regulated); flame height adjustable
• Heat output guidance: 2-3 kW (This is comparable to two bars of an electric fire.)
• Fuel suitable: Bioethanol Fuel (minimum ethanol content: 96%). NOTE: Gel fuel is NOT suitable.

Delivery

This item must be collected from our showroom in London Kensington. Unfortunately, as there is no packaging available, delivery cannot be arranged.
